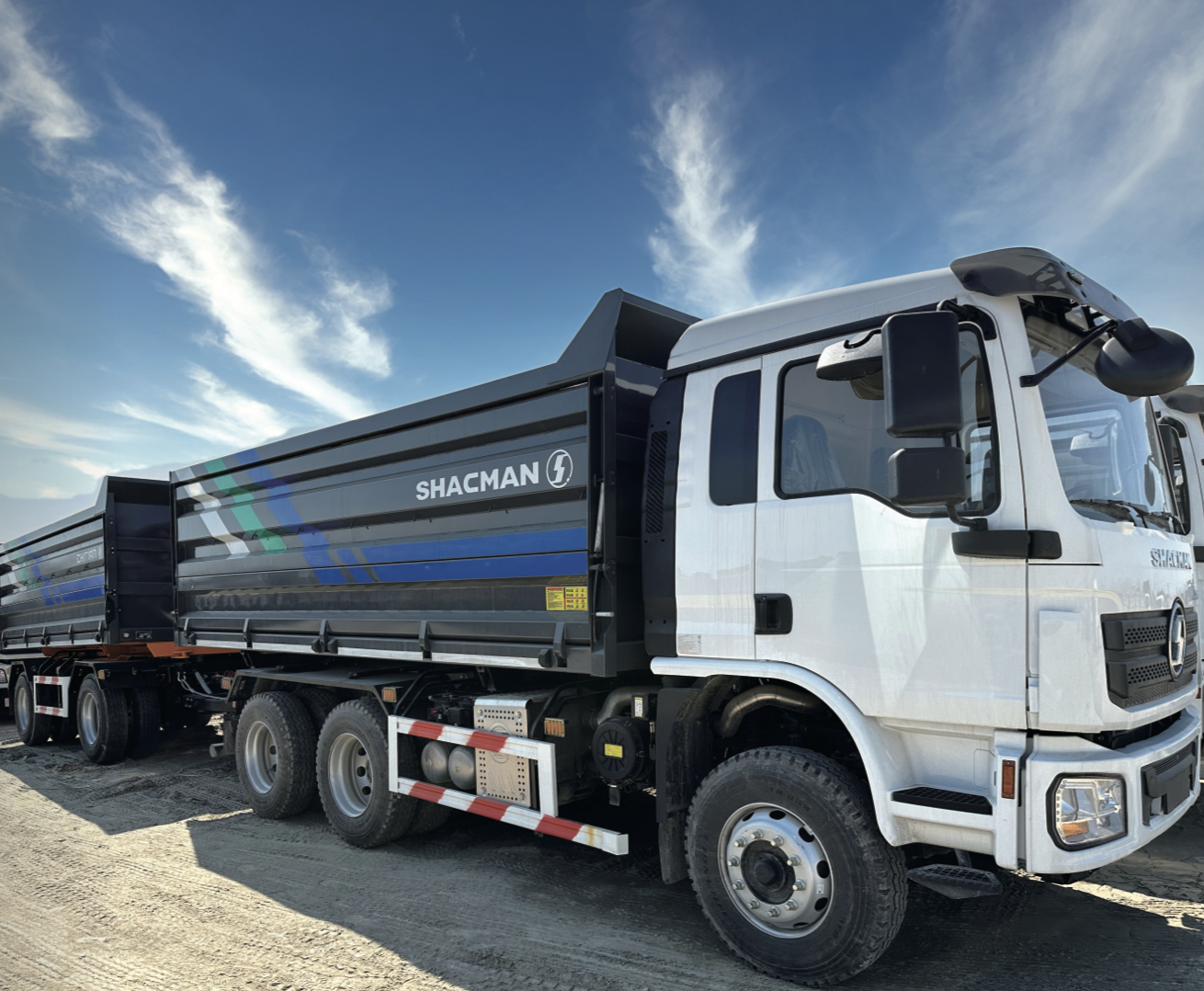

L3000 Series

Fully Loaded Maximum Speed: 105 km/h

WEICHAI and CUMMINS engines deliver up to 285hp of power

Superior Components

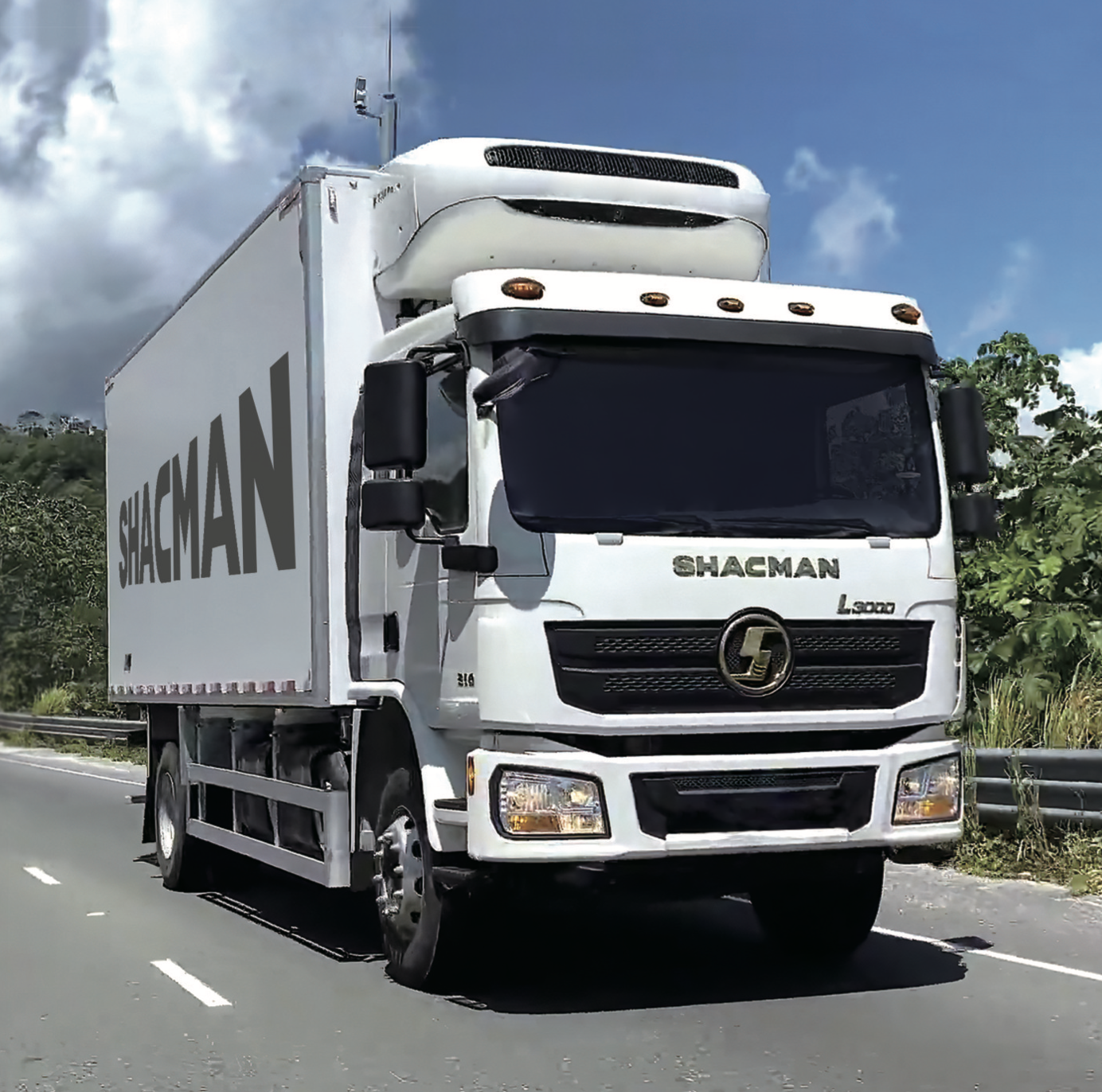

ENGINE

WEICHAI and CUMMINS, two of the world's top diesel engine manufacturers, provide the power source delivering up to 285hp.

GEARBOX

FAST 8-speed gearbox with aluminum housing and double intermediate shaft parallel transmission structure brings ultra-light weight and excellent efficiency.

AXLE

10t HANDE axle with robot welding and friction welding technology. Large braking torque of up to 28000N-m guarantees safety.

System-Level Security

Reliable Components

Robot-welded cab frame structure
Meets ECE R29 crash regulations
Lightweight frame with high-strength steel
Multi-beam design for bending and torsional resistance

Braking Safety Kit

Disc brake with 36000N-m braking torque
50% increase vs mainstream competitors
Lengthened brake line design
Improved brake response time

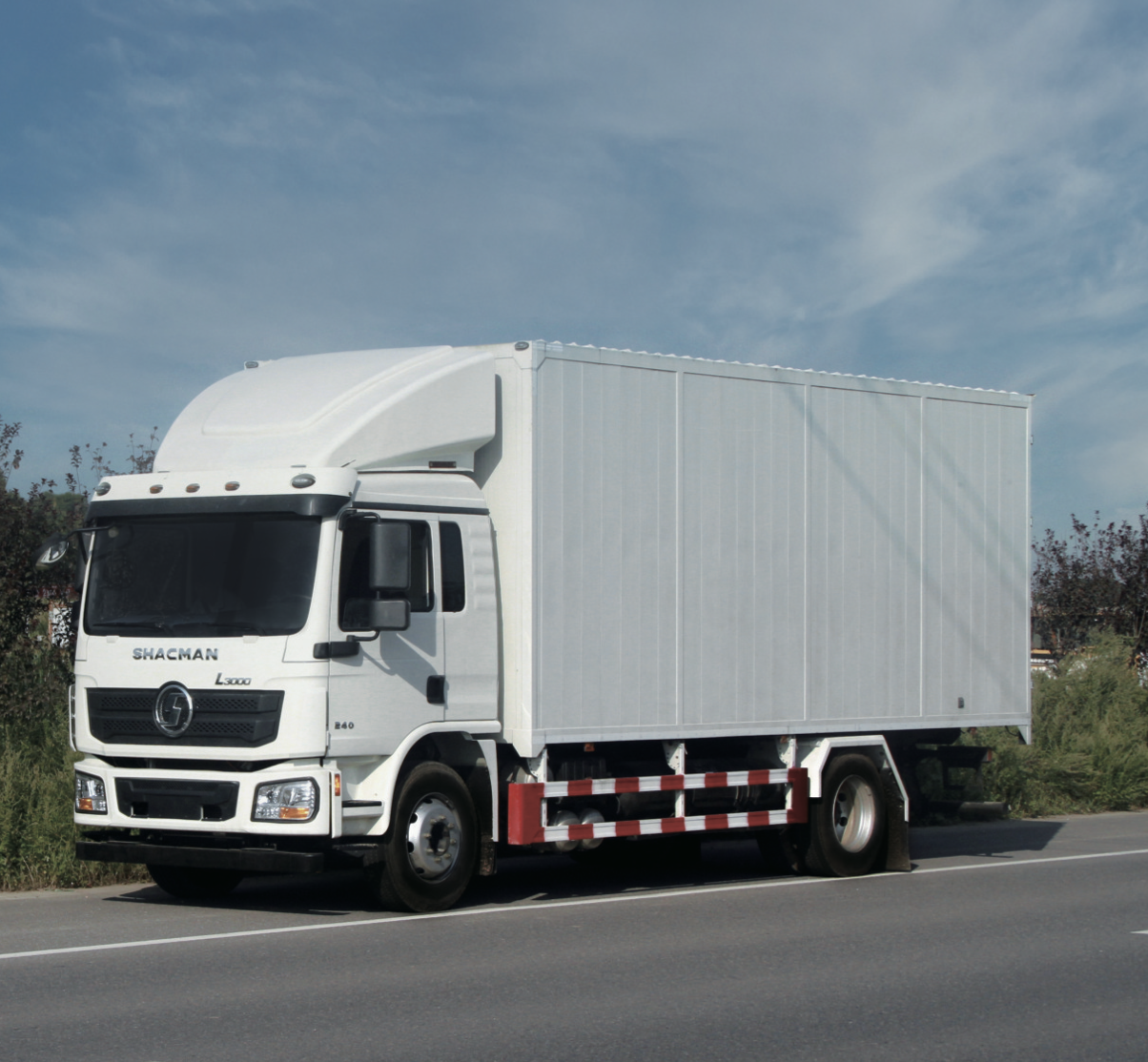

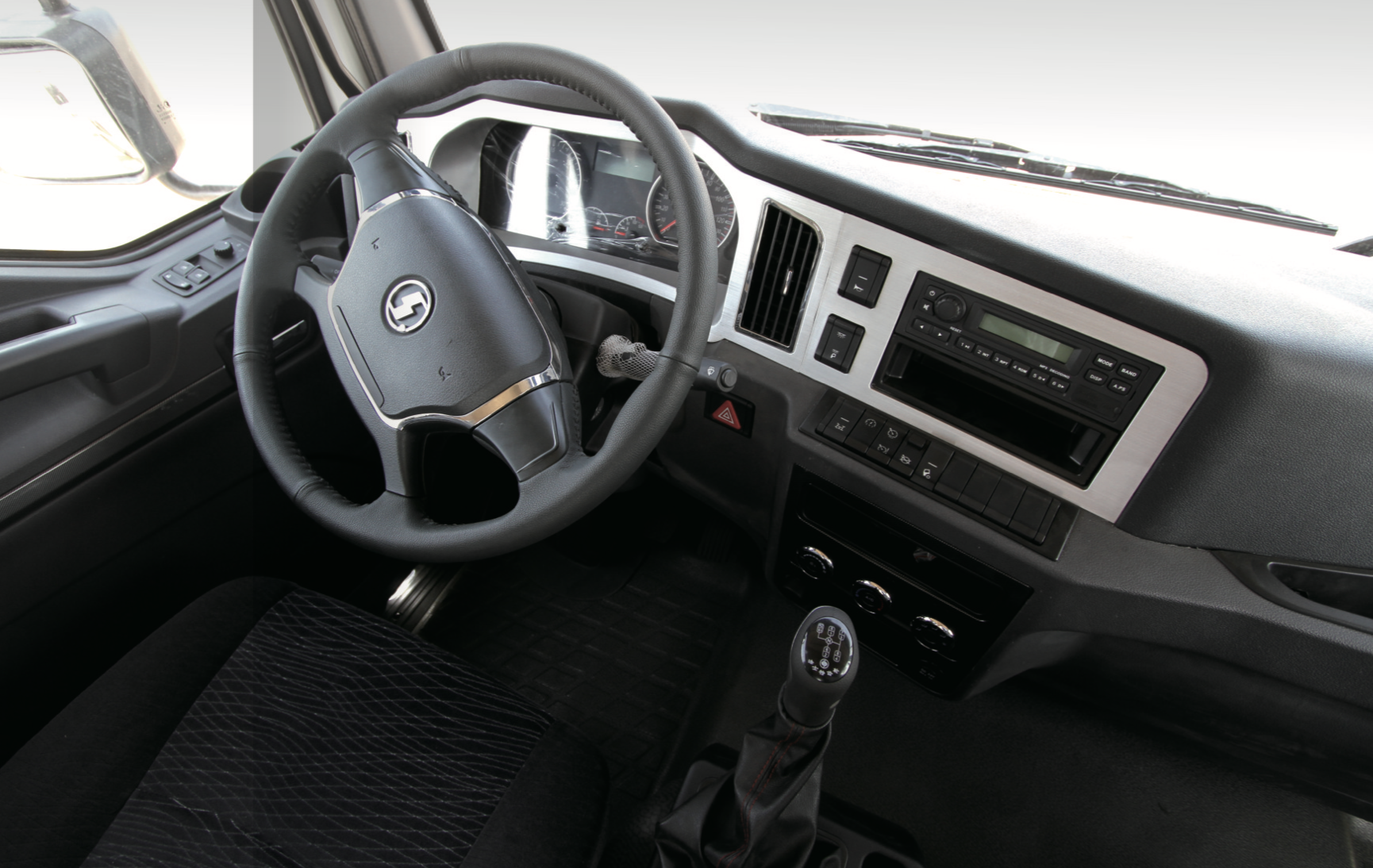

Compact Cab, Maximum Comfort

Hydraulic Suspension

Front and rear hydraulic suspension with lateral shock absorbers to effectively alleviate jolting.

Driver Comfort

Hydraulic shock absorbers for dynamic adaptation. Third seat option available. 645mm sleeper at leading level.

Sound Insulation

Six-layer composite sound insulation material keeps cab quiet for comfortable driving experience.

Spacious Interior

Wider leg space and generous storage for long-distance transportation needs.

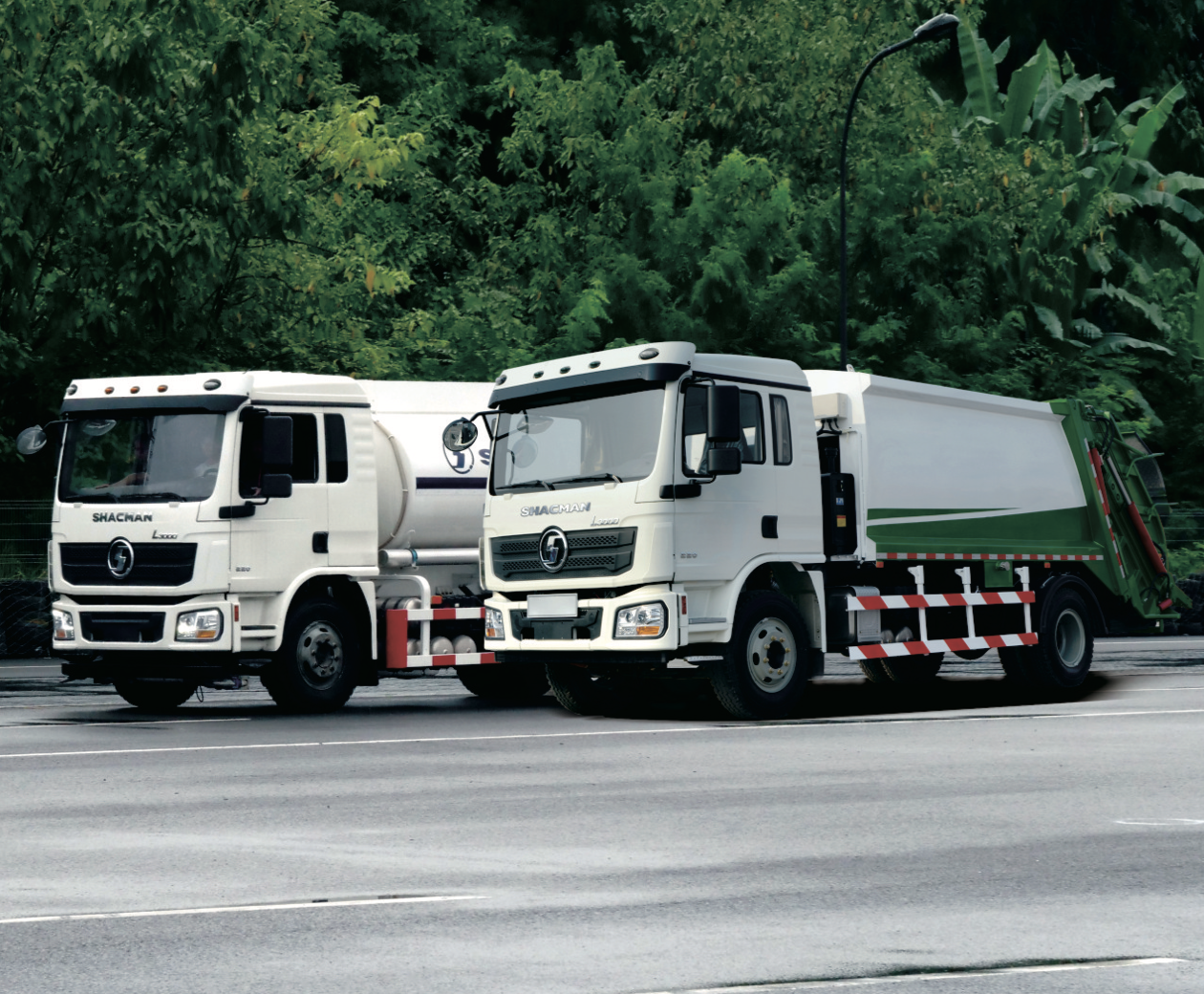

Multi-Scene Inter-City Transport

Cold Chain

Intercity transfer

Short-Haul

Logistics

Municipal

Sanitation

Industrial

Product transportation

L3000 Product Range

L3000 Lorry Truck

Drive: 4x2
GCW: 12-18t
Engine: WP6/WP7/ISD

Power: 210-285 HP
Transmission: FAST MT(8/9)
Axle: 10t single-stage

Max Speed: 110 km/h
Application: Urban roads
Container: 5000-7750mm

L3000 Special Truck (Oil Tanker/Garbage)
